Getting Started with Apache Hop: A Beginner's Guide

Discover the world of Apache Hop with this beginner's guide. Learn the basics, setup tips, and dive into data integration effortlessly.

Introduction

Apache Hop is an open-source data integration and processing platform that allows users to easily design, build, and manage complex data pipelines and workflows. Its purpose is to simplify the process of integrating and processing large volumes of data from various sources, including databases, files, and streaming platforms.

With Apache Hop, users can create pipelines to extract, transform, and load data between different systems and formats. Apache Hop offers a wide range of features, including a graphical user interface, advanced data transformation capabilities, and support for various data sources. Its flexible and extensible architecture also allows users to easily integrate it with other tools and platforms.

We can say that Apache Hop's main characteristics are:

1. User-friendly interface: Apache Hop provides a user-friendly, drag-and-drop graphical interface that allows users to easily design and manage their data integration pipelines and workflows without requiring programming skills.

2. Flexibility: Apache Hop supports a wide range of data sources, data types, and data processing requirements. Its plugin-based architecture can be easily extended to support new data sources and processing functions.

3. Advanced data processing capabilities: Apache Hop provides a rich set of data processing capabilities, including filtering, sorting, joining, aggregating, and many others, to transform data in various ways.

4. High performance: Apache Hop is designed to process large volumes of data efficiently and in parallel. It can optimize data processing pipelines and scale them across multiple nodes, providing high performance even for very large datasets.

5. Integration with other tools: Apache Hop can be integrated with other tools and platforms, such as Apache Kafka, Apache Hadoop, and Apache Spark, to provide a complete end-to-end data processing solution.

Installing Apache Hop

Here are the general steps to install Apache Hop on Windows, Linux, and Mac:

1. Download Java: Apache Hop requires Java to run. You can download and install the latest version of Java from the official Oracle website.

2. Download Apache Hop: You can download the latest version of Apache Hop from the official Apache Hop website. Choose the appropriate version for your operating system (Windows, Linux, or Mac).

3. Extract Apache Hop: Once the download is complete, extract the downloaded ZIP file to a directory of your choice.

4. Configure Apache Hop: You can navigate to the extracted directory and locate the "config" directory. Open the "hop-config.json" file using a text editor and configure the settings to match your environment.

5. Start Apache Hop: Once you have configured Apache Hop, you can start it by running the appropriate command for your operating system:

• Windows: Run the "hop-run.bat" file located in the extracted directory. Apache Hop should launch and the graphical user interface will be displayed.

• Linux and Mac: Open a terminal and navigate to the extracted directory. Run the "hop-run.sh" file by entering "./hop-run.sh" in the terminal. Apache Hop should launch and the graphical user interface will be displayed.

That's it! You have successfully installed Apache Hop on your Windows, Linux, or Mac machine. Keep in mind that the installation process may differ slightly depending on your operating system.

Creating your first project and environment

Projects: In Apache Hop, a project is a container for data integration assets: pipelines, and workflows. Projects provide a way to organize and manage these assets, as well as to define project-specific settings and parameters.

Projects also have various configuration options, such as the ability to set up project-specific variables, metadata, and plugin configurations. This allows you to easily manage and configure multiple data integration projects.

Environments: An environment, on the other hand, is a set of parameters that define specific execution contexts for a project. This includes settings for database connections, file paths, and other environment-specific configurations. Environments provide a way to manage the deployment of a project across different environments, for example, development, testing, and production.

Each environment has its own set of configuration parameters, including database connections, file paths, and other environment-specific settings. This allows you to easily switch between environments without having to change the project configurations manually.

You can create additional environments based on your specific needs, such as a development environment, a staging environment, and a production environment.

When you deploy a project, you can choose the target environment where you want to deploy the project. This ensures that the project is executed with the correct environment-specific settings and parameters.

In conclusion, projects and environments are essential concepts in Apache Hop for organizing and managing data integration assets, as well as for defining the execution context for a project. By using projects and environments, you can create robust data integration solutions that can be easily managed and deployed across different environments.

Create a project

Creating a project in Apache Hop is the first step toward building your data integration solution. A project provides a container for your workflows and pipelines, allowing you to organize and manage them efficiently.

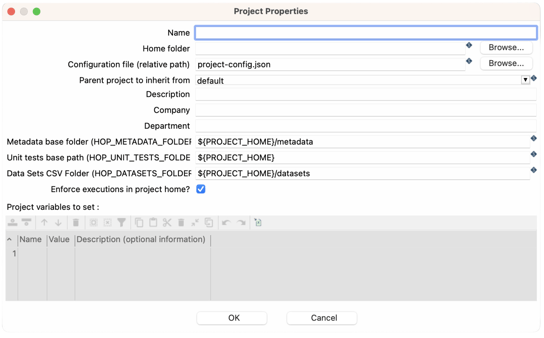

1. To create a new project, click on the "Add a new project" button on the welcome screen. You will be prompted with the following view.




2. Provide all the configuration parameters including a name for the project and the directory where you want to store the project files.

3. Click "OK" to create your project.

Once a project is created, you will be prompted to create an environment. If you choose to proceed by clicking the "OK" button, you will be presented with a dialog box to create the environment.

Create an environment

Creating an environment for your project in Apache Hop involves setting up the environment-specific parameters and configuring the environment variables, metadata, etc. By creating and managing environments, you can easily switch between different execution contexts and deploy your project across multiple environments.

1. Click on the "Add a new environment" button to create a new environment. This will open the environment configuration window. You can provide a name for the environment, specify the purpose of the environment (Development, Testing, etc), and select the project that you want to associate with the environment.



2. In the environment configuration window, you can set up environment-specific parameters such as database connections, file paths, and other environment-specific settings. You can create different environment JSON files and manage them in this view.

3. After configuring the environment, click on the "OK" button to save the environment configuration.

Pipelines in Apache Hop

In Apache Hop, a pipeline is a set of data integration steps that are executed in a sequence to transform and move data from one source to another. Pipelines are essential components of Apache Hop, and they are used to perform various data integration tasks, like data extraction, transformation, and loading.

A pipeline in Apache Hop consists of a set of transforms that are arranged in a specific order. Each transform represents a data integration operation, for example, reading data from a file or a database, transforming data using a specific logic or algorithm, or writing data to a target destination. These transforms can be combined and configured to perform complex data integration tasks, such as data aggregation, filtering, joining, and cleansing.

Pipelines are an important concept in Apache Hop because they provide a flexible and scalable framework for data integration. Pipelines can be developed, tested, and deployed quickly and efficiently, allowing you to process large volumes of data with minimal effort. Additionally, pipelines can be configured to run in parallel, which allows you to process data faster and improves overall performance.

Apache Hop also provides a rich set of features for managing and monitoring pipelines, including logging, error handling, and scheduling. This makes it easy to monitor the performance and status of pipelines and to diagnose and troubleshoot errors.

Pipelines are a critical component of Apache Hop and are used extensively to perform various data integration tasks. By providing a flexible and scalable framework for data integration, pipelines enable you to process large volumes of data efficiently and reliably, allowing you to extract maximum value from your data.

Elements of a pipeline

In Apache Hop, a pipeline is composed of several components, including transforms and hops. These components work together to perform data integration tasks including data extraction, transformation, and loading.

Transforms: Transforms are the building blocks of a pipeline in Apache Hop. They represent the individual data integration operations that are performed on the data as it flows through the pipeline. Each transform performs a specific data manipulation or processing function, such as filtering, joining, aggregating, or sorting. Apache Hop provides a wide range of transforms, each with its own set of parameters and options that can be configured to perform the desired data integration operation.

Hops: Hops are the connectors between the transforms in a pipeline. They define the flow of data from one transform to the next. Hops specify the direction of data flow and the order in which transforms are executed. Hops can also be configured to include metadata that describes the data being passed from one transform to another. This metadata can include information including field names, data types, and formats.

The components of a pipeline in Apache Hop work together to perform data integration tasks. Transforms provide the specific data manipulation functions, while hops connect the transforms and specify the flow of data through the pipeline. By configuring the transforms and hops in a pipeline, you can create complex data integration workflows that can perform a wide range of data integration tasks.

Create a pipeline

1. To create a pipeline, you need to select the Pipeline option from the New option on the horizontal toolbar. Your new pipeline is created, and you’ll see the dialog below.



2. Start adding transforms to your pipeline.

Pipelines execution

In Apache Hop, transforms in pipelines are executed in parallel, which means that multiple transforms can be executed simultaneously. This allows for faster processing of data, as well as better utilization of system resources.

When a pipeline is executed, Apache Hop creates multiple threads to execute the transforms in parallel. Each thread is responsible for executing a specific transform or set of transforms. The number of threads created depends on the number of available system resources and the configuration of the pipeline.

The parallel execution of transforms in a pipeline is achieved through the use of thread-safe components and synchronization mechanisms. Apache Hop provides a wide range of thread-safe transforms that can be used to perform data integration operations in parallel. In addition, Apache Hop provides mechanisms for managing the synchronization of data between parallel transforms, such as the use of shared variables and buffers.

The parallel execution of transforms in pipelines in Apache Hop provides a significant performance advantage over traditional sequential processing. By utilizing multiple threads to execute transforms simultaneously, Apache Hop can process large volumes of data more quickly and efficiently.

Workflows in Apache Hop

In Apache Hop, a workflow is a collection of interconnected pipelines and/or other workflows that are executed in a specific order to achieve a larger data integration goal. A workflow can be used to orchestrate multiple pipelines, each performing a specific data integration task, in a specific order to create a comprehensive data integration solution.

Workflows in Apache Hop provide a way to orchestrate multiple pipelines and/or workflows to create a comprehensive data integration solution. By defining the order of execution and the interdependencies between the components of a workflow, you can create a flexible and scalable data integration solution that can handle a wide range of data integration tasks.

Elements of a workflow

In Apache Hop, a workflow is composed of two primary components: actions and hops.

Actions: Actions are the building blocks of a workflow in Apache Hop. They represent the individual tasks or operations that need to be performed as part of the workflow. Each action can perform a specific task, such as executing a pipeline, sending an email notification, or copying files. Apache Hop provides a wide range of actions, each with its own set of parameters and options that can be configured to perform the desired task.

Hops: Hops are the connectors between the actions in a workflow. They define the flow of control from one action to the next. Hops specify the direction of control flow and the order in which actions are executed. Hops can also be configured to include metadata that describes the data or control flow being passed from one action to another. This metadata can include information like variable names, data types, and formats.

The components of a workflow in Apache Hop work together to perform a series of tasks in a specific order. Actions provide the specific tasks or operations that need to be performed, while hops connect the actions and specify the flow of control through the workflow. By configuring the actions and hops in a workflow, you can create complex data integration workflows that can perform a wide range of tasks, such as data extraction, transformation, and loading.

Create a workflow

1. To initiate the creation of a pipeline, you can click on the "New" option located on the horizontal toolbar and then select the "Workflow" option. You will be presented with the following dialog.



2. Start adding actions to your workflow.

📓 Note that when you create a workflow, Apache Hop automatically adds the Start action by default.

Apache Hop Tools

Apache Hop is a comprehensive data integration platform that includes a suite of powerful tools for designing, managing, and executing workflows and pipelines.

📓 While we will highlight some of the main tools in this post, it is recommended to refer to the official documentation for a more detailed overview of all the tools available in Hop.

Hop GUI

The Apache Hop GUI is a user-friendly graphical interface that allows users to design and manage data integration workflows with ease. It provides a visual drag-and-drop interface for designing pipelines and workflows, as well as a range of configuration options and tools for managing data sources, targets, and other resources. The Hop GUI is highly customizable, with a wide range of plugins and configurations that can be used to extend its functionality and tailor it to specific use cases. It is designed to be intuitive and easy to use, even for users with little or no experience in data integration, while also providing advanced features and capabilities for power users and developers.

Hop Conf

Hop conf is a crucial component of Apache Hop that enables users to configure the platform's behavior and settings to suit their specific needs. It provides a centralized location for managing system settings, preferences, and metadata that can be accessed and shared across different workflows and pipelines. The Hop conf file contains a range of configuration options that can be used to customize the behavior of the platform, including settings for logging, error handling, resource allocation, and more. Users can modify these settings to optimize performance, improve data quality, and ensure the security and reliability of their data integration processes.

Hop Run

Apache Hop Run is a powerful command-line tool that allows users to execute workflows and pipelines created in Apache Hop. It provides a simple, streamlined interface for running integration processes from the command line, with support for an extensive scope of configuration options and settings. The tool is highly customizable, with a range of options for controlling the behavior of workflows and pipelines, including options for logging, debugging, and error handling.

Hop Server

Apache Hop Server is a powerful tool for deploying, managing, and executing data integration workflows and pipelines in a centralized, scalable environment. It provides a web-based interface for managing workflows and pipelines, with support for scheduling, monitoring, and error handling.

The tool allows users to manage their data integration processes from a central location, with access to a range of configuration options, security settings, and metadata management features.

Variables and parameters

Variables and parameters are important features of Apache Hop that enable users to customize the behavior of workflows and pipelines based on dynamic inputs or runtime conditions.

Variables are values that can be set and accessed within a workflow or pipeline, allowing users to customize behavior based on the current context. For example, variables can be used to specify input and output directories, database connection strings, or other configuration settings. Variables can be set manually, or they can be dynamically generated based on the results of other transforms or components.

Parameters, on the other hand, are inputs that are passed to a workflow or pipeline at runtime. Parameters are used to customize behavior based on user input or external conditions. For example, a parameter might be used to specify the name of a file to be processed, or the date range for a data query. Parameters can be defined in the workflow or pipeline configuration, and they can be passed as command-line arguments or through other input mechanisms.

Metadata

Metadata is a key concept in Apache Hop that refers to the data that describes the structure, properties, and relationships of other data objects in the system. In other words, metadata is data about data, and it is used by Apache Hop to manage and organize the different components of a data integration solution.

In Apache Hop, metadata is stored in a centralized repository that can be accessed by different components of the system, such as workflows and pipelines. The metadata includes information about data sources and targets, for example, the location, structure, and format of the data.

Metadata is critical for ensuring the accuracy, consistency, and reliability of a data integration solution, as it enables users to manage and track the different components of the system, and to ensure that data is processed correctly and consistently.

Cassandra Connection

Cassandra Connection is a metadata type in Apache Hop that enables users to define connections to Apache Cassandra, a popular NoSQL database system. The Cassandra Connection metadata type allows users to specify the hostname, port, username, password, and other properties of the Cassandra cluster, and to use these properties in other components of their data integration solution, including workflows and pipelines.

With the Cassandra Connection metadata type, users can easily integrate data from Cassandra into their data integration solution, and can take advantage of the scalability, fault tolerance, and other benefits of the Cassandra database system. The metadata type also supports a range of configuration options, for example, SSL encryption, authentication, and load balancing, that enable users to optimize the performance and security of their Cassandra connections.

Data Set

The Data Set metadata type is a fundamental component of Apache Hop that allows users to define the structure and properties of their data sources and targets. Data sets are essentially metadata representations of data files, databases, and other sources or targets that contain data, and they provide a standardized way to define and manage the different types of data that are used in a data integration solution.

With the Data Set metadata type, users can specify the location, format, schema, and other properties of their data sources and targets, and can use these properties in other components of their data integration solution.

MongoDB Connection

With the MongoDB Connection metadata type, users can specify the connection details for their MongoDB database, including the server, port, username, password, and other connection properties. Once connected, users can then use other components of Apache Hop such as MongoDB input and output transforms to read and write data to the MongoDB database.

Neo4j Connection

The Neo4j Connection metadata object is used to define the connection parameters for Neo4j, for example, the server host, port, and credentials. Once this metadata object is set up, users can use it in various Neo4j transforms, including the Neo4j Output transform, which allows users to write data from Apache Hop to Neo4j.

With the Neo4j Connection metadata object, users can easily manage their Neo4j connections and reuse them across different transforms, without having to enter the connection details each time. In addition to specifying the connection details, the Neo4j Connection metadata object also allows users to configure other settings related to the Neo4j database, like the encryption level and the maximum number of concurrent connections. This metadata object can be easily created and modified using the Apache Hop graphical user interface, making it easy for users to set up and manage their Neo4j connections.

Neo4j Graph Model

This metadata object defines the structure of the graph in the Neo4j database, including node and relationship types, properties, and indexes. It also provides a way to map incoming data to the Neo4j graph structure. The Neo4j Graph Model metadata object is created in Apache Hop's Metadata editor view, where users can define the graph structure or import it from different formats. Once the metadata object is created, it can be used in Hop's Neo4j transforms to load data into Neo4j and run Cypher queries against the graph.

Relational Database Connection

This metadata object allows users to connect to and access data from various relational databases, such as MySQL, Oracle, and PostgreSQL, among others. To create a Relational Database Connection in Apache Hop, users need to provide the necessary details like the database type, hostname, port, database name, username, and password.

Once the connection is established, the metadata object stores this information for future use, making it easier for users to access the database without having to enter the credentials repeatedly. Another advantage of using the Relational Database Connection metadata object is that it allows users to create reusable connections that can be shared across multiple projects. This saves time and effort and ensures consistency in connecting to the same database across different projects.

Pipeline Unit Test

The Pipeline Unit Test Metadata Object enables users to define a set of input data, execute the pipeline transformation logic, and validate the output against the expected results. This metadata object is a crucial tool for ensuring data quality and integrity in data processing pipelines. With the Pipeline Unit Test metadata object, users can define the input data for the pipeline and the expected output.

📓 Please note that this post mentions only some examples of the metadata objects in Apache Hop. There are many other metadata objects available in Apache Hop that are not described here. To explore them in-depth, we recommend checking out the official Apache Hop documentation.

Plugins

Plugins in Apache Hop are a way to extend the functionality of the core Apache Hop engine by adding new transforms, metadata types, and other components. Plugins are designed to be modular and can be developed by third-party developers or by users themselves to meet specific data integration needs.

The plugin framework in Apache Hop is flexible and allows users to easily install and manage plugins from within the Hop GUI. Users can browse and install plugins directly from the Hop Marketplace, which is a central repository for plugins that are available for use with Apache Hop. Additionally, users can also develop their plugins and distribute them to others for use.

For example, a plugin might add a new transform that enables users to perform a specific data transformation or integrate with a specific third-party system. Another plugin might add a new metadata type that enables users to connect to a new type of data source.

Conclusion

This article introduces users to Apache Hop, a comprehensive data integration platform that includes a suite of powerful tools for designing, managing, and executing workflows and pipelines. The article explains the key concepts of Hop, including projects, environments, pipelines, and workflows, as well as the importance of metadata, variables, and parameters in data integration workflows.

The article also covers the main tools in Hop, including the GUI, Hop Run, Hop Import, and Hop Server, and explains how plugins can be used to extend the functionality of the core Hop engine. Finally, the article provides a step-by-step guide to creating a pipeline in Hop, including configuring transforms and hops, and discusses the benefits of using Hop for data integration, including its flexibility, scalability, and ease of use. If you're interested in data integration and looking for a powerful and flexible platform, then Apache Hop is definitely worth checking out. With its comprehensive set of tools, plugins, and metadata types, Hop provides a wide range of options for building complex data integration workflows.

Whether you're an experienced developer or new to data integration, there's a lot to learn and explore with Apache Hop. So if you're curious about what Hop can do, we encourage you to dive in and start experimenting. Try building a pipeline or workflow, explore the available plugins, and see how you can customize and extend Hop to meet your specific data integration needs. And don't forget to check out the official Hop documentation and community forums, where you can find more information, tutorials, and resources for learning and using Hop.

With its active and supportive community, Hop is a great platform for learning, experimenting, and building powerful data integration workflows. So why not give it a try and see what you can accomplish with Apache Hop!
